LRB MATTRESSES

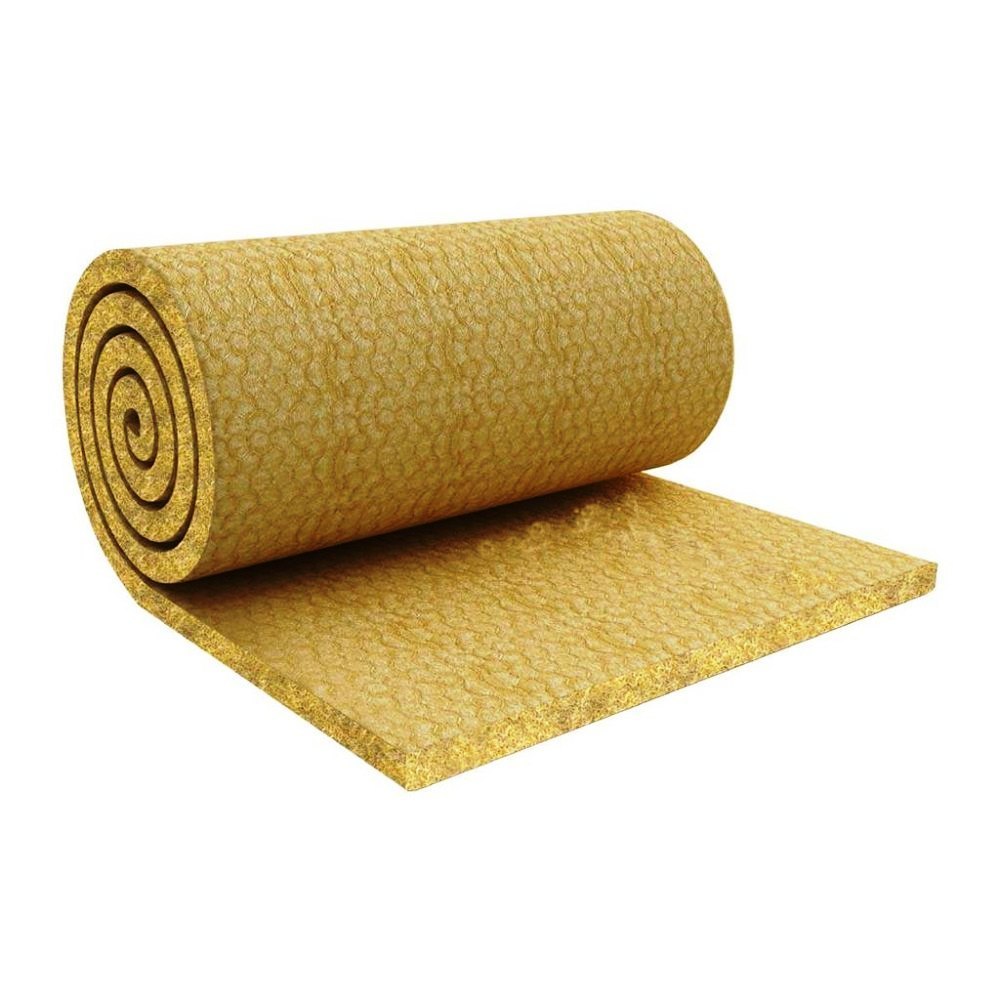

Rockwool Lightly Resin Bonded (LRB) mattresses are made of mineral fibers lightly bonded with resin and faced on one side with galvanized or stainless steel wire mesh. It is a flexible material with firm structure and excellent thermal insulation properties.
LRB mattresses are non-combustible in nature, reinforced with wire mesh, and used extensively for high-temperature insulation in industrial equipment.
Characteristics
- Densities: 70–160 Kg/m³
- Dimensions: 1.22 m W, 1.52/1.64 m (3–5 m L)
- Thickness: 25, 40, 50, 75, 100 mm
- Temperature Range: Up to 750°C
- Fire Properties: Fire Retardant, Non-Combustible
- Thermal Conductivity: 0.037 W/m.k
- Linear Shrinkage: Less than 1%
- Standard: IS - 8183
Applications
Specially designed for thermal insulation of:
- Vessels
- Boilers
- Towers of chemical process plants
- Steam turbines
- Storage tanks
- Pipelines
Advantages
- Excellent thermal, acoustic and fire properties
- High resistance to temperature
- Flexible and easy to wrap around curved surfaces
- Free from HFCs and blowing agents
- Chemically inert and recyclable
- Non-hygroscopic and dimensionally stable
- Tolerates surface irregularities and eliminates air gaps
- Non-combustible
